Strong and efficient.

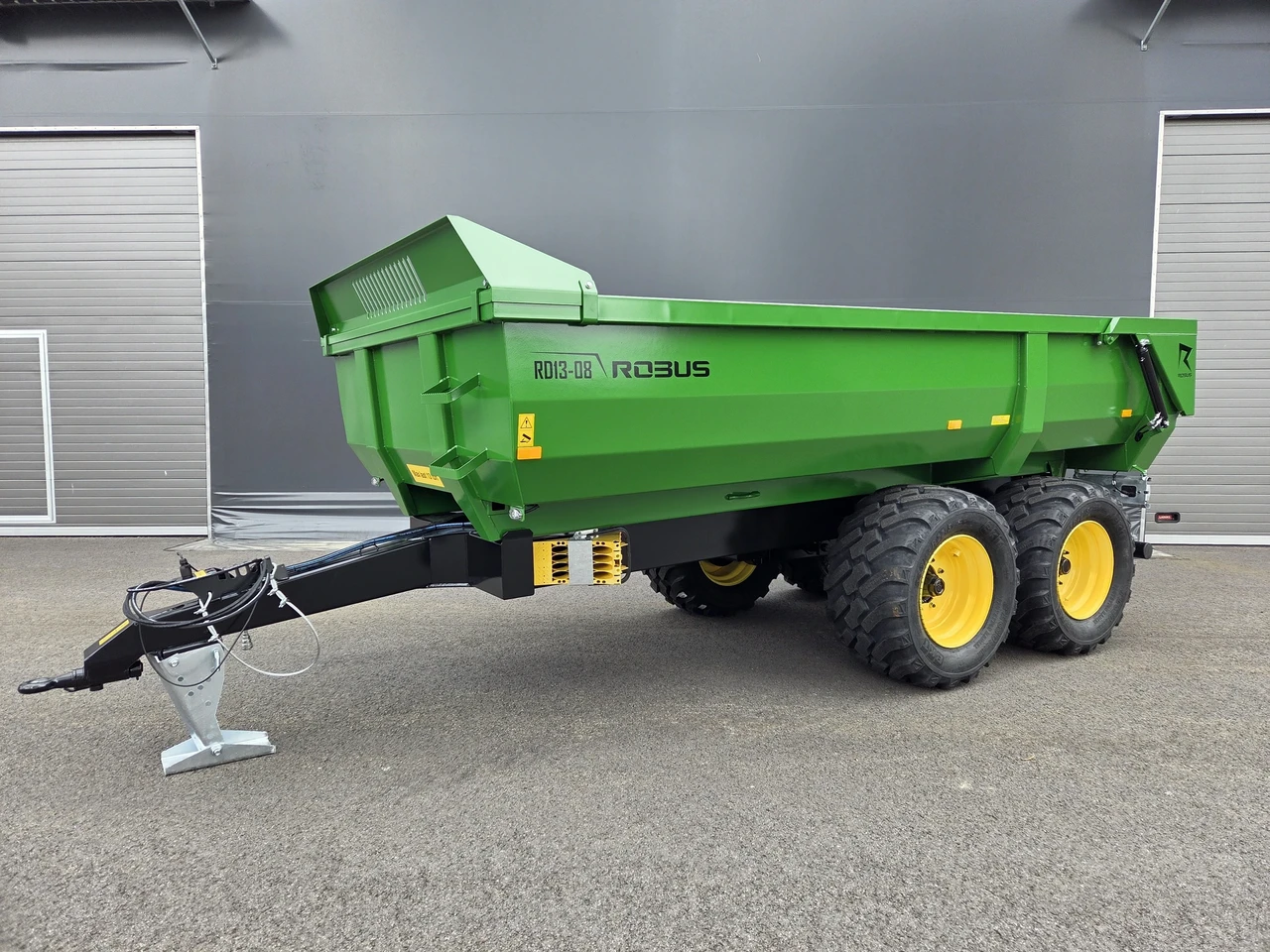

Model RD13-08
Length(mm)(With HSD01)                         6375
Width(mm) 2550
Height(mm) 1930
Internal measurements of a platform(mm) 4670x2310x780
Capacitance(m3), ()-with volume backdoor 8,4
Capacitance with extensions (m3), ()-with volume backdoor 16
Base 4054+1050
Empty weight(kg) 2800
Max load capacity(kg) 13000
Total weight(kg) 15800
Hitch load(kg) 2600
Axel sum 2
Permissible axel load(kg) 6600
Hub/axel 80x80, 8bolts
Suspension Mechanical bogie
Brake type 300x90; 0, 2 or 4 brakes
Speed limit(km/h) 40
Hydraulic circuit working pressure of a brake(bar) 160
Working pressure of hydraulic circuit(bar) 180-200
Oil volume for tipping(L)
Standard wheels  520/50-17
Tilt angle 52
Thickness of box’s bottom sheet(mm) 6
Thickness of box’s side sheet(mm) 6
Optional wheels 500/50-17

For a trailer with detailed accessories list, please send price request.
