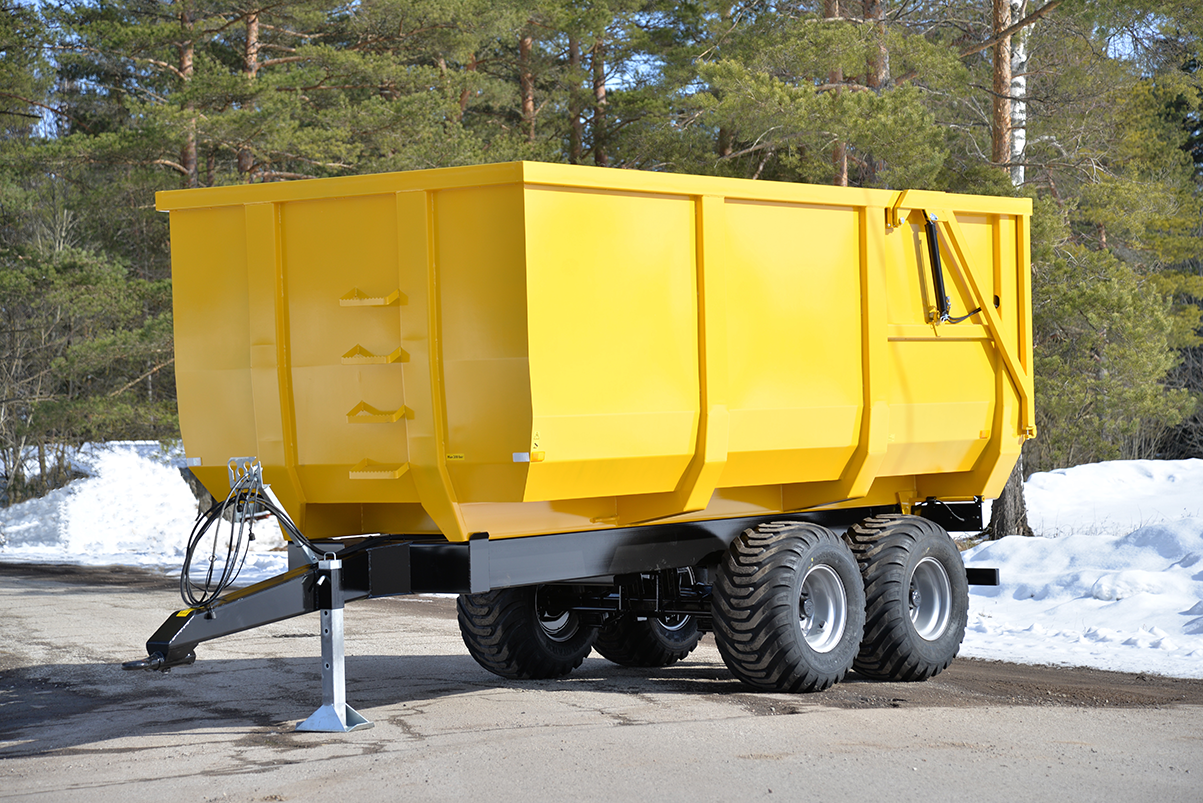

Volume trailer with max capacity of 17,2 m3
Model RV13-17SB
Length(mm)(With HSD01)                         6375
Width(mm) 2550
Height(mm) 2900
Internal measurements of a platform(mm) 4670x2310x1600
Capacitance(m3), ()-with volume backdoor 17,2
Capacitance with extensions (m3), ()-with volume backdoor  -
Base 4029+1100
Empty weight(kg) 3640
Max load capacity(kg) 12860
Total weight(kg) 16500
Hitch load(kg) 2650
Axel sum 2
Permissible axel load(kg) 6925
Hub/axel 80x80, 8bolts
Suspension Spring bogie
Brake type 350x90(359E); 0, 2 or 4 brakes
Speed limit(km/h) 40
Hydraulic circuit working pressure of a brake(bar) 160
Working pressure of hydraulic circuit(bar) 180-200
Oil volume for tipping(L)
Standard wheels 520/50-17
Tilt angle 52
Thickness of box’s bottom sheet(mm) 6
Thickness of box’s side sheet(mm) 4
Optional wheels 500/50-17             550/45-22,5
For a trailer with detailed accessories list, please send price request.
