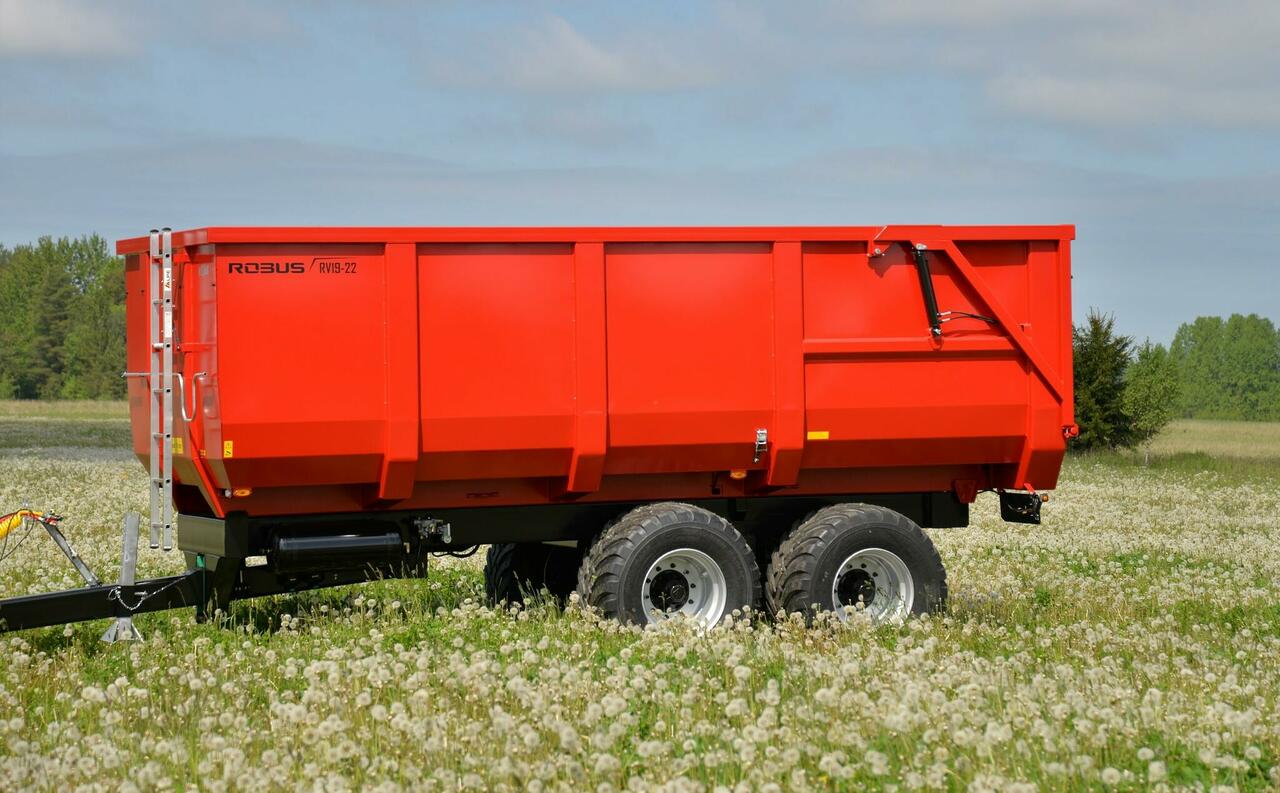

Volume dumper trailer for tough jobs.
Model RV19-22
Length(mm)(With HSD01)                         7550
Width(mm) 2550
Height(mm) 3100
Internal measurements of a platform(mm) 5830x2310x1600
Capacitance(m3), ()-with volume backdoor 21,6
Capacitance with extensions (m3), ()-with volume backdoor 33,7
Base 4520+1350
Empty weight(kg) 5250
Max load capacity(kg) 19000
Total weight(kg) 24250
Hitch load(kg) 3500
Axel sum 2
Permissible axel load(kg) 10375
Hub/axel 100x100, 10bolts
Suspension Mechanical bogie
Brake type 400x80(408E),           4 brakes
Speed limit(km/h) 40
Hydraulic circuit working pressure of a brake(bar) 160
Working pressure of hydraulic circuit(bar) 180-200
Oil volume for tipping(L)
Standard wheels 600/50-22,5
Tilt angle 52
Thickness of box’s bottom sheet(mm) 6
Thickness of box’s side sheet(mm) 4
Optional wheels 710/45-22,5 ET-50
